16mm Underfloor Heating Board 20mm | 1200mmx600mmx20mm| XPS
16mm Underfloor Heating Board 20mm | 1200mmx600mmx20mm| XPS
A low-profile cement coated XPS underfloor heating board designed for 16mm pipe with 200mm pipe centres. Measuring 1200mm x 600mm and only 20mm thick, each lightweight 0.72m2 panel provides pre-routed channels for efficient underfloor heating pipe installation and is suitable for fast floor finishing applications.
The Cement Coated XPS Underfloor Heating Board is a low-profile panel designed to provide a convenient installation solution for water underfloor heating systems using compatible 16mm pipe.
Each board measures 1200mm x 600mm, providing approximately 0.72m2 coverage per panel, while the slim 20mm thickness helps minimise the overall increase in finished floor height.

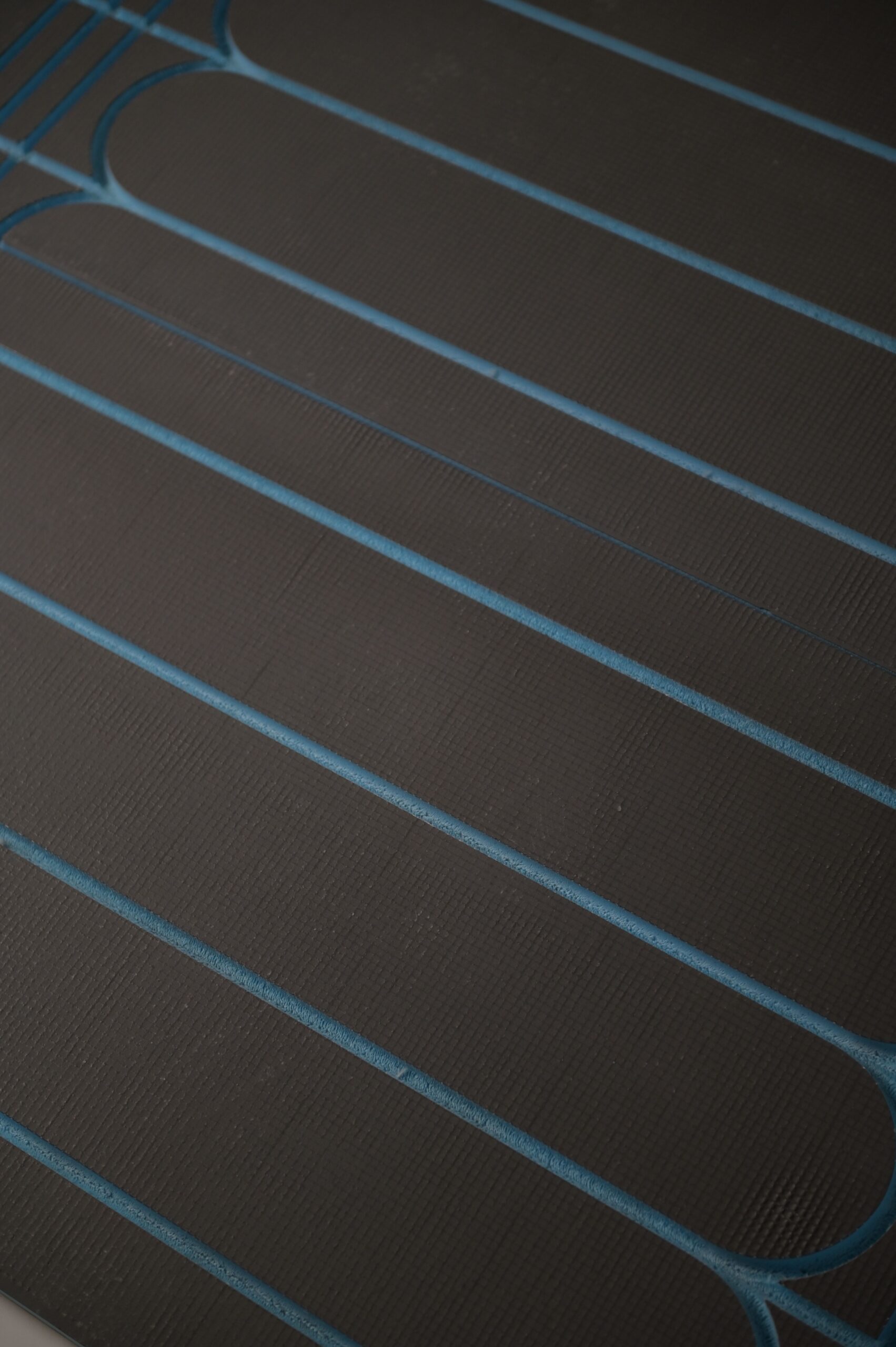

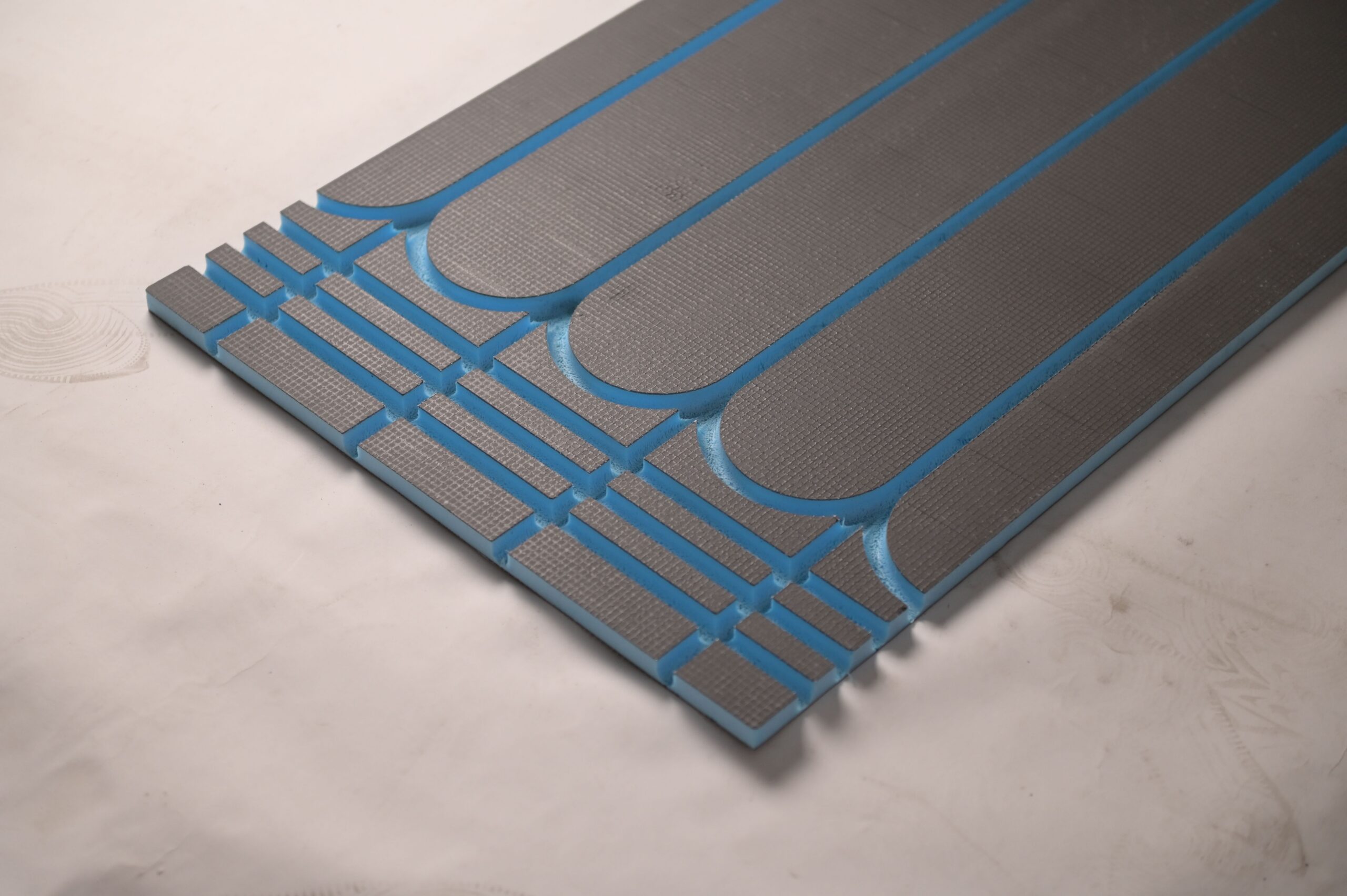

The pre-routed pipe channels are arranged at 200mm centres, helping installers position the underfloor heating pipe consistently across the floor area. The routed return sections also provide a convenient layout for turning pipe runs at the end of each circuit.
Manufactured from lightweight XPS insulation with a cement coated surface, the boards weigh approximately 2.6kg per panel, making them easier to handle and position during installation.

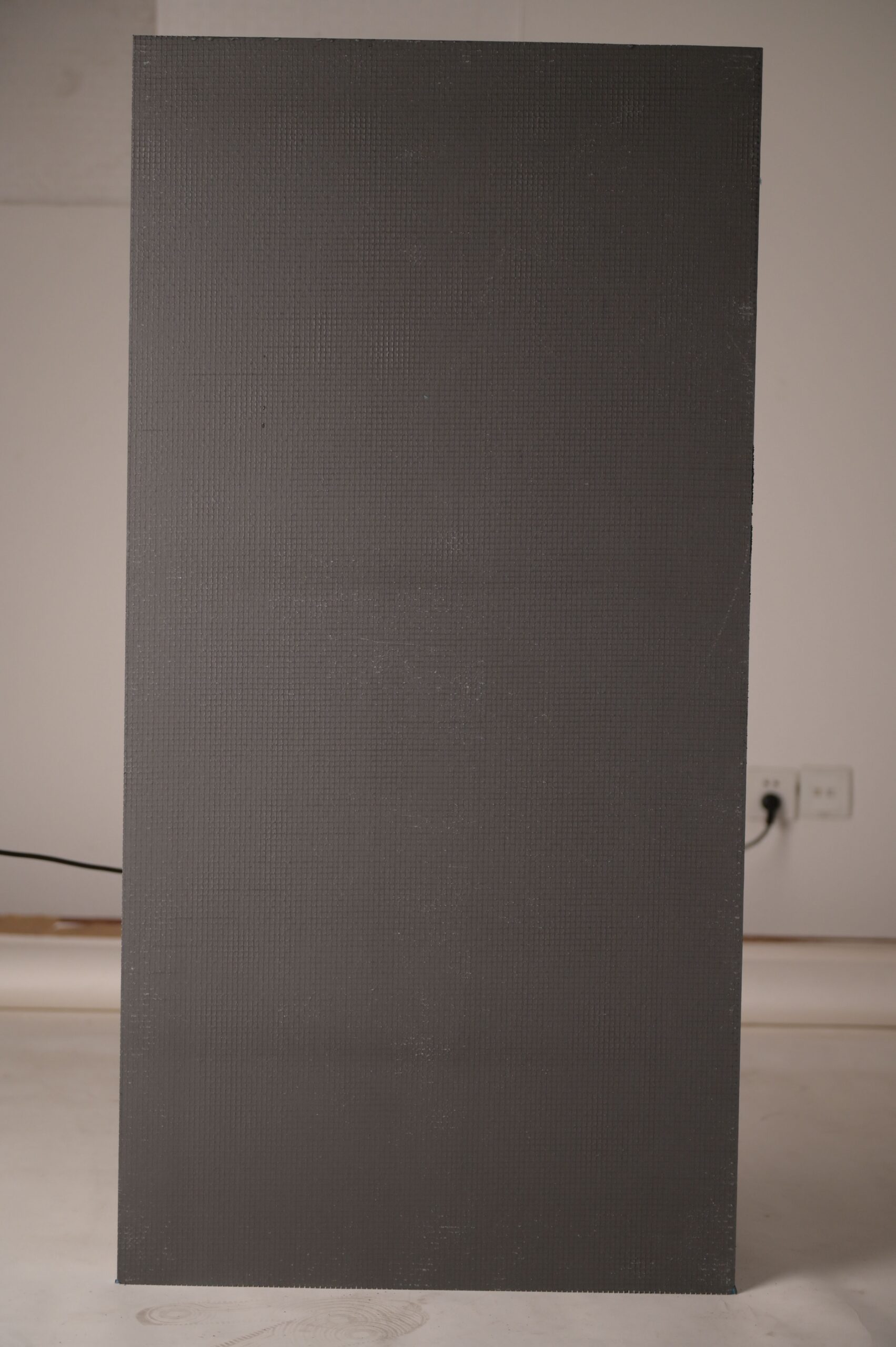

The cement coated surface is designed for fast floor finishing and can be covered after installation, making the boards suitable for applications where a low-profile underfloor heating build-up is required.
- Cement coated XPS underfloor heating board
- Designed for compatible 16mm underfloor heating pipe
- 200mm pipe centres
- Low-profile 20mm board thickness
- 1200mm x 600mm board dimensions
- Approximately 0.72m2 coverage per board
- Pre-routed straight pipe channels
- Pre-formed return sections for pipe routing
- Lightweight XPS construction
- Approximately 2.6kg per panel
- Approximately 3.6kg/m2
- Suitable for low-profile underfloor heating installations
- Designed for fast floor finishing
Board Material: XPS
Surface: Cement Coated
Board Length: 1200mm
Board Width: 600mm
Board Thickness: 20mm
Coverage: Approximately 0.72m2 Per Board
Pipe Size: 16mm
Pipe Centres: 200mm
Panel Weight: Approximately 2.6kg
Weight: Approximately 3.6kg/m2
Application: Water Underfloor Heating Systems
- Water underfloor heating systems
- 16mm underfloor heating pipe installations
- Low-profile heating systems
- Domestic underfloor heating
- Renovation and refurbishment projects
- New heating installations
- Projects where finished floor height needs to be minimised
- Compatible tiled floor installations
