32A Type A RCBO 30mA B Curve 6kA Single Pole | MK Sentry Circpro H6836S

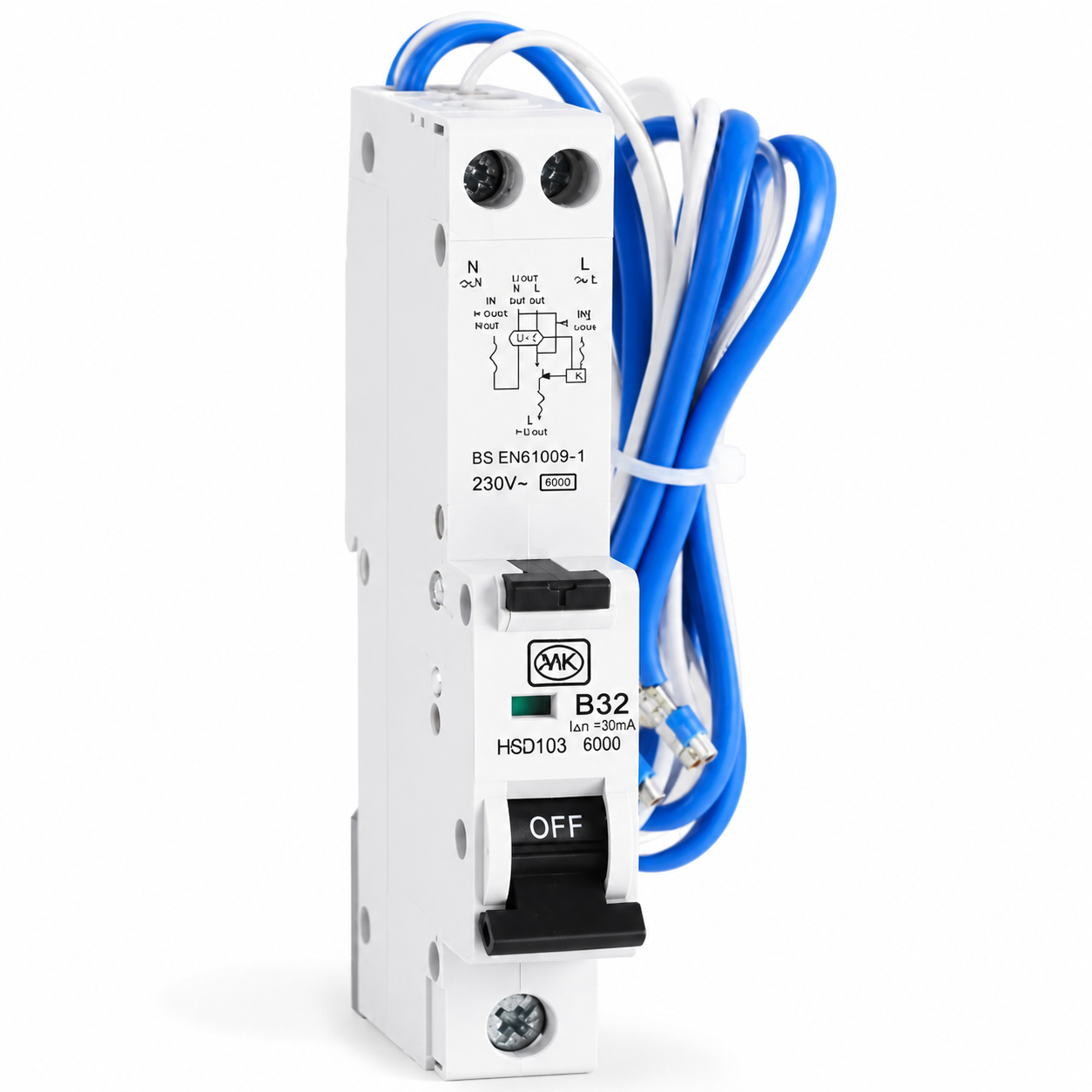

MK Sentry Circpro H6836S 1 Module Single Pole B Curve Type A RCBO 32A 6kA 30mA

The MK Sentry Circpro H6836S Type A RCBO, supplied by MEP Stock, provides advanced protection against overloads, short circuits, and earth leakage faults in a single compact device. Designed for modern consumer units, this 32A Single Pole RCBO enhances electrical safety while helping installations comply with current wiring regulations.

Featuring a Type A RCD, this RCBO detects both AC and pulsating DC residual currents, making it suitable for today’s electrical installations where electronic equipment and appliances are commonly used. The B Curve tripping characteristic provides reliable protection for general-purpose circuits such as lighting, socket outlets, and control circuits.

With a 6kA breaking capacity and 30mA residual current sensitivity, the MK Sentry Circpro RCBO delivers dependable protection against electrical faults while reducing the risk of electric shock. Its compact 1 module DIN rail design allows quick installation and efficient use of consumer unit space.

Key Features

• Brand: MK Sentry
• Sold by: MEP Stock
• Model: H6836S
• 1 Module Single Pole RCBO
• 32A Rated Current
• Type A Residual Current Protection
• B Curve Tripping Characteristic
• 30mA RCD Sensitivity
• 6kA Breaking Capacity
• Combined Overload, Short Circuit & Earth Fault Protection
• Compact DIN Rail Mounting Design
• Suitable for Residential & Commercial Consumer Units
• Manufactured to BS EN 61009

Technical Specifications

• Brand: MK Sentry
• Model: H6836S
• Product Type: RCBO
• Rated Current: 32A
• Number of Poles: Single Pole (1P)
• RCD Type: Type A
• Tripping Curve: B Curve
• Residual Current: 30mA
• Breaking Capacity: 6kA
• Mounting: DIN Rail
• Standard: BS EN 61009

Ideal Applications

• Consumer Units
• Residential Electrical Installations
• Commercial Buildings
• Lighting Circuits
• Socket Outlet Circuits
• General Purpose Circuits
• Office Installations
• Retail Premises
• Electrical Upgrades
• New Build Projects
